VE-745C Shower Stall Valve
• 3-3/8" Shower Stall Valve

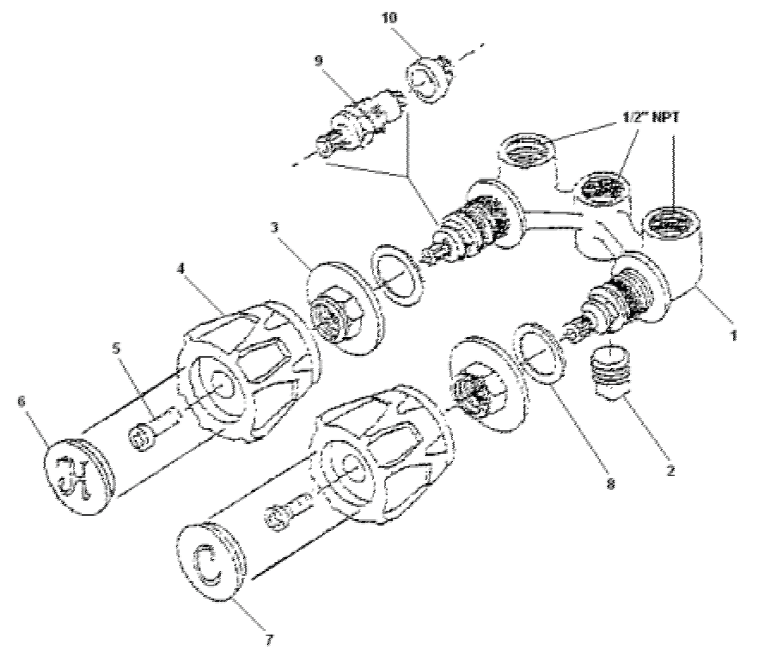

SSV-338 - Shower Stall Valve - Material Specifications
| No. | Description |
|---|---|
| 1 | Cast Brass Valve Body |
| 2 | Pipe Plug, 1/2” NPT Thread |
| 3 | Flange Nut |
| 4 | Crystal Handle |
| 5 | Screw |
| 6 | “H” Hole Plug |
| 7 | “C” Hole Plug |
| 8 | Washer |
| 9 | Stem & Bonnet Assembly |
| 10 | Brass Seat |
