Series SL Actuated Package
Series SL Actuated Package
- Size range 2" - 12"
- Epoxy coated Ductile Iron Body
- 316 Stainless disc
- ISO 5211 Direct Mount pad
- Lug or Wafer design

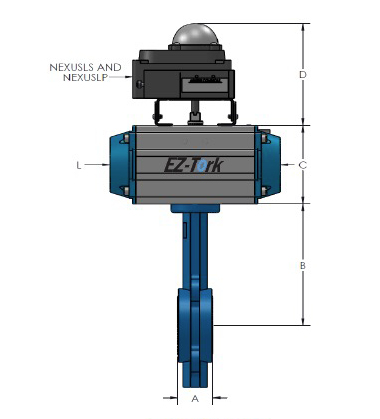

Side View

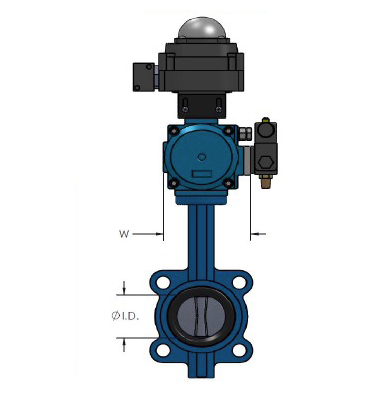

Front View
SL9 Butterfly Valve Series (in.)
| SIZE | Ø I.D. | A | B |
|---|---|---|---|
| 2" | 2.09 | 1.69 | 5.51 |
| 2-1/2" | 2.56 | 1.77 | 5.91 |
| 3" | 3.11 | 1.77 | 6.22 |
| 4" | 4.09 | 2.05 | 6.89 |
| 6" | 6.10 | 2.20 | 8.31 |
| 8" | 8.00 | 2.36 | 9.25 |
| 10" | 9.86 | 2.68 | 10.43 |
| 12" | 11.89 | 3.07 | 12.01 |
EZ-TORK Actuator Dimensions (in.)
| MODEL | Actuator Code | L (Length) | W** (Width) | C (Height) | |
|---|---|---|---|---|---|
| DA | SR | ||||
| 50 | BNB | - | 6.06 | 2.78 | 2.76 |
| - | |||||
| 65 | CNB | CDB | 7.44 | 3.52 | 3.50 |
| - | |||||
| 75 | DNB | DAB | 8.27 | 4.04 | 3.94 |
| DDB | |||||
| 85 | - | EAB | 9.02 | 4.43 | 4.45 |
| - | |||||
| 95 | FNB | FAB | 10.39 | 4.96 | 4.84 |
| FDB | |||||
| 110 | - | - | 10.47 | 5.45 | 5.35 |
| - | |||||
| 125 | HNB | HDB | 13.27 | 6.18 | 6.34 |
| - | |||||
| 140 | INB | IAB | 14.84 | 7.01 | 7.01 |
| - | |||||
| 160 | JNB | JAB | 16.22 | 7.72 | 7.87 |
| JDB | |||||
| 190 | - | KAB | 19.21 | 8.52 | 9.13 |
| KDB | |||||
| 210 | - | LAB | 21.65 | 9.27 | 10.04 |
| LDB | |||||
Options & Accessories
The following tables contain dimensions for top and side mounted accessories, represented by dimension “D” (Height) and “W” (Width).
**D and W are defined at its maximum dimension.
| Limit Switch | D** | Rating |
|---|---|---|
| SVF | (in.) | |
| NEXUSLS | 5.0 | NEMA4 |
| NEXUSLP | 7.0 | NEMA4 |
| Pilot Valve | Add to "W" |
|---|---|
| SVF | (in.) |
| Series PV | 2.0 |
