Trap-0606SC, 0706SC, 0707SC - Semi Cast Brass P Traps
Downloads:
Trap-0606SC, 0706SC, 0707SC - Semi Cast Brass P Traps
• Semi Cast Brass P Trap
• J-Bend With Cleanout
• 17 Gauge Wall Arm
• With Brass Coupling Nut & Flange
• Chrome Plated Finish
Trap-0606SC - 1-1/4" x 1-1/4"
Trap-0706SC - 1-1/2" x 1-1/4"
Trap-0707SC - 1-1/2" x 1-1/2"

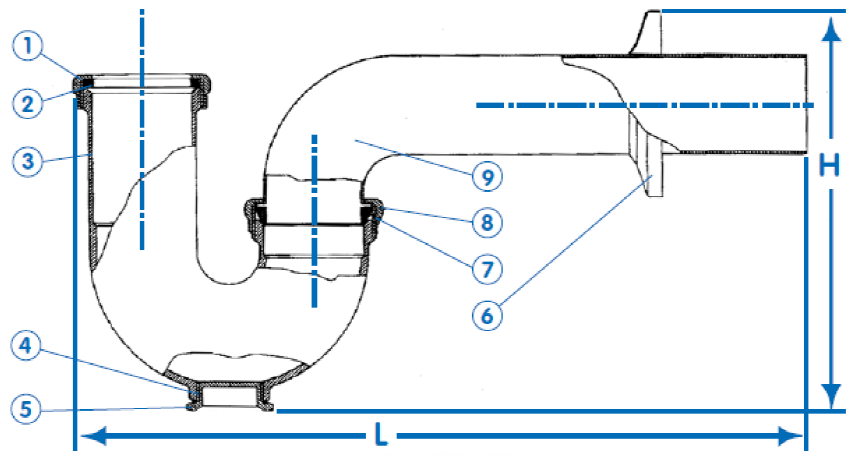

Trap - 0606SC, 0706SC, 0707SC - Semi Cast Brass P Traps - Material Specifications
| No. | Part | Material | |
|---|---|---|---|
| 1 | Slip Nut | Brass | |
| 2 | Washer | Rubber | |
| 3 | Cast Body | Brass | |
| 4 | Clean Out Plug | PTFE | |
| 5 | Bonnet | Brass | |
| 6 | Flange | St. Steel | |
| 7 | Gasket | Tapered PTFE | |
| 8 | Slip Nut | Brass | |
| 9 | Wall Arm | Brass | |
Dimensions
| Part # | Size | H | L | |||
|---|---|---|---|---|---|---|
| Trap-0606SC | 1-1/4" x 1-1/4" | 5.50 | 10.80 | |||
| Trap-0706SC | 1-1/2" x 1-1/4" | 6.30 | 11.00 | |||
| Trap-0707SC | 1-1/2" x 1-1/2" | 6.30 | 11.00 | |||
