Waste Bend
Downloads:

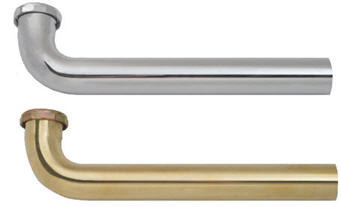

Waste Bend
• Chrome Plated or Rough Brass
• 17 or 22 Gauge
Material Specifications
| Part | Material |
|---|---|
| 17 Gauge Slip Nut | Brass |
| 22 Gauge Slip Nut | Zinc Die Cast |
| Washer, 1-1/2 | Rubber |
| Washer Bend, 1-1/2 | Brass |
| Part # | Size |
|---|---|
| WB076RB22 | 1-1/2" x 6" Rough Brass, 22 Gauge |
| WB078RB17 | 1-1/2" x 8" Rough Brass, 17 Gauge |
| WB078RB22 | 1-1/2" x 8" Rough Brass, 22 Gauge |
| WB0712CP17 | 1-1/2" x 12" Chrome Plated, 17 |
| WB0712CP22 | 1-1/2" x 12" Chrome Plated, 22 |
| WB0712RB17 | 1-1/2" x 12" Rough Brass,17 |
| WB0712RB22 | 1-1/2" x 12" Rough Brass, 22 |
| WB0715RB17 | 1-1/2" x 15" Rough Brass, 17 |
| WB0715RB22 | 1-1/2" x 15" Rough Brass, 22 |
| WB0718CP22 | 1-1/2" x 18" Chrome Plated, 22 |
| WB0718RB17 | 1-1/2" x 18" Rough Brass,17 |
| WB0718RB22 | 1-1/2" x 18" Rough Brass, 22 |
| WB0724CP22 | 1-1/2" x 24" Chrome Plated, 22 |
| WB0724RB17 | 1-1/2" x 24" Rough Brass,17 |
| WB0724RB22 | 1-1/2" x 24" Rough Brass, 22 |
| WB0730RB22 | 1-1/2" x 30" Rough Brass, 22 |
| WB0736RB22 | 1-1/2" x 36" Rough Brass, 22 |
