773 PVC Ball Valve - Single Union
Downloads:
773 PVC Ball Valve - Single Union
• Single Union
• 150 PSI @ 73 Deg. F.
• White Color
• EPDM Seat Seals & "O" Rings
• Full Port Ball
• Threaded or Solvent Ends
• Sizes 1 1/2" & 2"

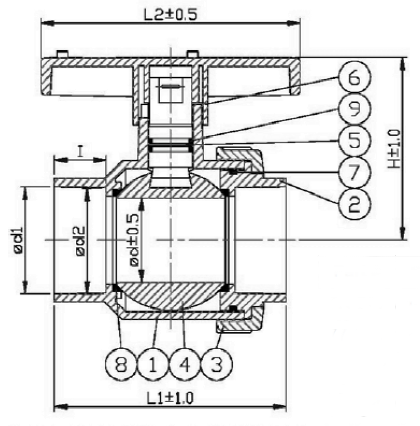

Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Body | UPVC | |||
| 2 | End Connector | UPVC | |||
| 3 | Union Nut | UPVC | |||
| 4 | Ball | UPVC | |||
| 5 | Stem | UPVC | |||
| 6 | Handle | ABS | |||
| 7 | Union O-Ring | EPDM | |||
| 8 | Seat | EPDM | |||
| 9 | Stem O-Ring | EPDM | |||

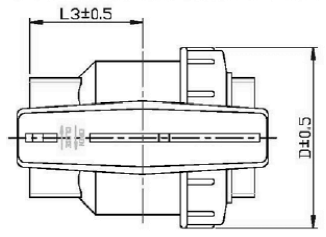

Dimensions
| Part # | Size | D | d | d1 | d2 | L1 | L2 | L3 | H | I | W | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 773S07 | 1-1/2” | 3.43 | 1.50 | 1.91 | 2.39 | 4.53 | 4.77 | 2.21 | 3.31 | 1.09 | 2.36 | |||
| 773T07 | 1-1/2” | 3.43 | 1.50 | 1.91 | 2.39 | 4.53 | 4.77 | 2.21 | 3.31 | 1.09 | 2.36 | |||
| 773S08 | 2” | 4.16 | 1.89 | 1.90 | 2.37 | 5.16 | 5.79 | 2.60 | 4.10 | 1.16 | 2.76 | |||
| 773T08 | 2” | 4.16 | 1.89 | 1.90 | 2.37 | 5.16 | 5.79 | 2.60 | 4.10 | 1.16 | 2.76 | |||
