BARV Steam Radiator Angle Valve - Bronze, Heavy Pattern
BARV Steam Radiator Angle Valve - Bronze, Heavy Pattern
• Steam Radiator Angle Valve
• Bronze - Heavy Pattern
• 15 WSP - 60 WOG
• FIP x Male Union
• Sizes 1/2" - 2"

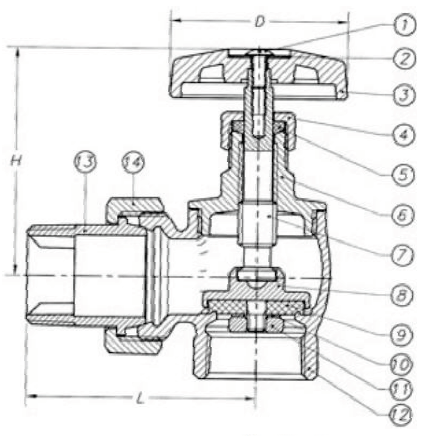

BARV Steam Radiator Angle Valve - Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Handle Bolt | Hot Rolled SAE 1010R | ||||||
| 2 | Name Plate | Aluminum A1100 | ||||||
| 3 | Handwheel | Phenolic | ||||||
| 4 | Packing Nut | Brass B16 C36000 | ||||||
| 5 | Gland Packing | PTFE | ||||||
| 6 | Bonnet | Bronze B584 C84400 | ||||||
| 7 | Stem | Brass B16 C36000 | ||||||
| 8 | Seat Holder | Brass B16 C36000 | ||||||
| 9 | Seat Packing | PTFE | ||||||
| 10 | Washer | Brass B16 C36000 | ||||||
| 11 | Seat Nut | Brass B16 C36000 | ||||||
| 12 | Body | Bronze B584 C84400 | ||||||
| 13 | Nipple | Bronze B584 C84400 | ||||||
| 14 | Nipple Nut | Bronze B584 C84400 | ||||||
Dimensions
| Part # | Size | D | H | L |
|---|---|---|---|---|
| BARV-0500 | 1/2” | 2.30 | 2.76 | 2.23 |
| BARV-0750 | 3/4” | 2.30 | 2.76 | 2.54 |
| BARV-1000 | 1” | 2.30 | 3.05 | 2.84 |
| BARV-1250 | 1-1/4” | 2.30 | 3.33 | 3.19 |
| BARV-1500 | 1-1/2” | 2.30 | 3.47 | 3.59 |
| BARV-2000 | 2” | 2.30 | 4.02 | 4.53 |
