SS-100 & SS-102S - Stainless Steel, Neoprene Stopper
Downloads:
SS-100 & SS-102S - Stainless Steel, Neoprene Stopper
• Stainless Steel Sink Strainers
• Fits 3-1/2" to 4" Openings
• CSA Approved
• Neoprene Stopper
• Fixed Stick Post
SS-102S - Same Specifications As Above
(No Approval), With Satin Nickel Finish

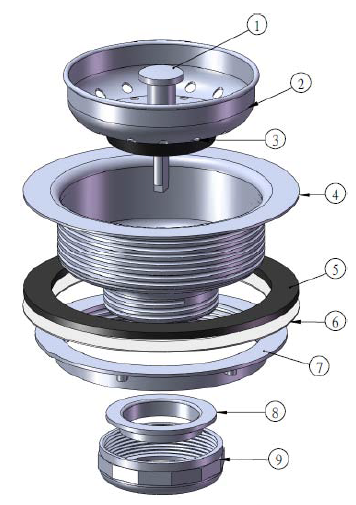

SS-100 & SS-102S - Stainless Steel, Neoprene Stopper - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Post | C.P ABS |
| 2 | Basket | SS430# |
| 3 | Gasket | Rubber |
| 4 | Body | SS430# |
| 5 | Washer | Rubber |
| 6 | Washer | Paper |
| 7 | Lock Nut | Zinc |
| 8 | Washer | PE |
| 9 | Slip | Zinc – Yellow Chromate Dip |
