Trap D - 1-1/2" x 1- 1/4" LA Trap- IPS With Cleanout
Downloads:
Trap D - 1-1/2" x 1- 1/4" LA Trap- IPS With Cleanout
• Rough Brass
• LA Trap- IPS
• 1- 1/2" x 1- 1/4"
• With Cleanout

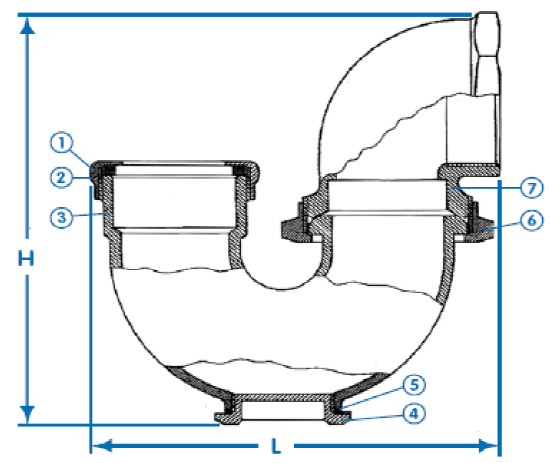

Trap D - 1-1/2" x 1-1/4" LA Trap - IPS With Cleanout - Material Specifications
| No. | Part | Material | ||
|---|---|---|---|---|
| 1 | Packing Nut | Brass | ||
| 2 | Packing | Rubber | ||
| 3 | Body | Brass | ||
| 4 | Bonnet | Brass | ||
| 5 | Packing | PTFE | ||
| 6 | Nipple Nut | Brass | ||
| 7 | Body | Brass | ||
Dimensions
| Part # | Size | H | L | ||||
|---|---|---|---|---|---|---|---|
| Trap-D | 1-1/2” FIP X 1-1/4” | 5.52 | 4.98 |
