431RRPLF Lead Free Red Rubber Double Meter Flange Kit
Downloads:
431RRPLF Lead Free Red Rubber Double Meter Flange Kit
• Lead Free Bronze
• Oval
• IPS Only
• Sizes - 1-1/2" and 2"
• Each Kit Includes: 2 Flanges, 2 Full Face Red Rubber Gaskets, 4 Nuts and 4 Bolts

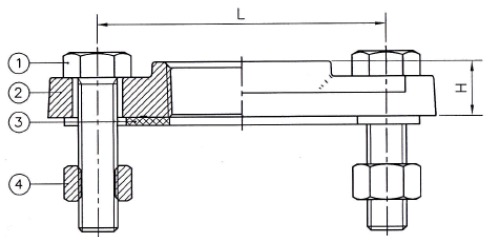

Dimensions
| Part # | Size | L | H |
|---|---|---|---|
| 431T07RRPLF | 1-1/2 | 4.00 | 0.93 |
| 431T08RRPLF | 2 | 4.53 | 0.87 |
Material Specifications
| No. | Part | Material | Qty | Water Contact |
|---|---|---|---|---|
| 1 | Bolt | Stainless Steel 304 | 4 | N |
| 2 | Flange | Cast Bronze C89844 | 2 | Y |
| 3 | Packing (Red Rubber) | Rubber (NBR) SN-719F | 2 | Y |
| 4 | Nut | Stainless Steel 304 | 4 | N |
